Product Summary

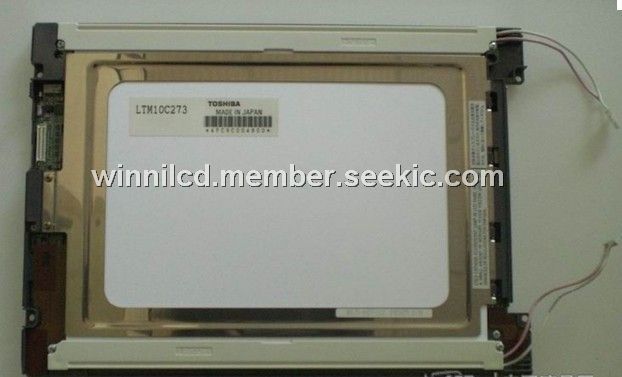

The LTM10C273 is a 26cm color TFT-LCD module.

Parametrics

LTM10C273 absolute maximum ratings: (1)Supply voltage, VDD: 7.0V; VFL: 2.0kV(rms); (2)FL driving frequency(fFL): 100kHz; (3)Input signal voltage(VIN): VDD+0.3V; (4)Operating temperature: 50℃; (5)Storage temperature: 60℃; (6)Storage humidity: 90%(RH).

Features

LTM10C273 features: (1)10.4" SVGA color display with high luminance; (2)Built in long life lamps(30000h); (3)Replaceable structure of lamp units; (4)Full mechanical compatible with LTM10C209H, LTM10C209A.

Diagrams

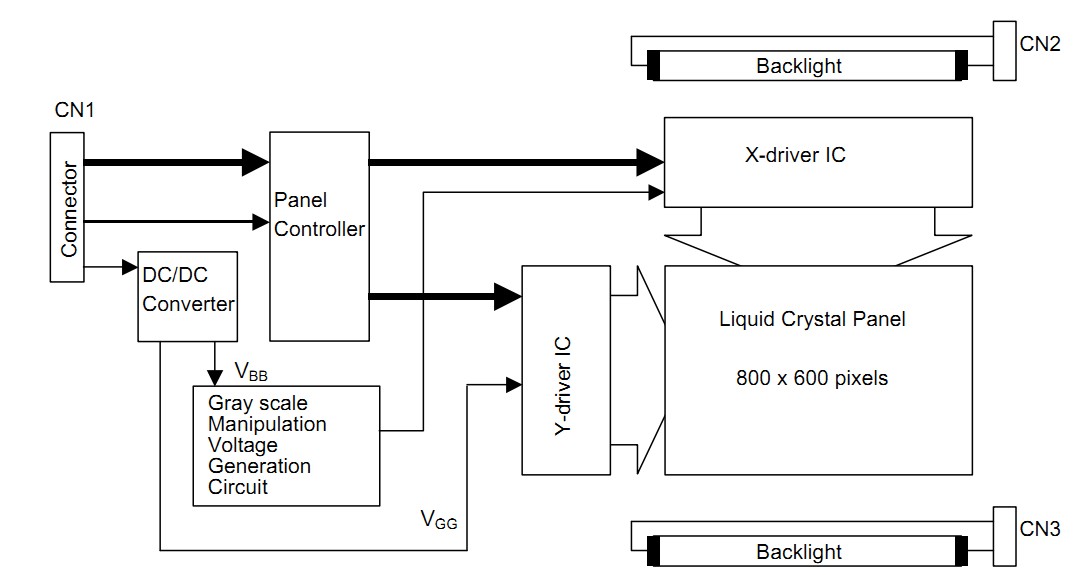

LTM10C273 block diagram
