Product Summary
The LTM08C351 is a 21cm color TFT-LCD module.
Parametrics
LTM08C351 absolute maximum ratings: (1)Supply Voltage (VDD): -0.3 to 4.0 V; (VFL): 0 to 2.0 kV(rms); (2)FL Driving Frequency (fFL): 100 kHz; (3)Input Signal Voltage (VIN): -0.3 to VDD+0.3 V; (4)Operating Temperature: 0 to 50℃; (5)Storage Temperature: -20 to 60℃; (6)Storage Humidity (Max. wet bulb temp. = 39℃): 10 to 90 %(RH).
Features
LTM08C351 features: (1)8.4" SVGA color display with High Brightness (350cd/m2); (2)Wide viewing angle; (3)Built in Long Life CCFLs (MTTF:50,000 h). ( Conditions / Ta: 25℃, IFL:6mA(rms)(continuing lighting), fFL: 40kHz ); (4)Replaceable structure of lamp units.

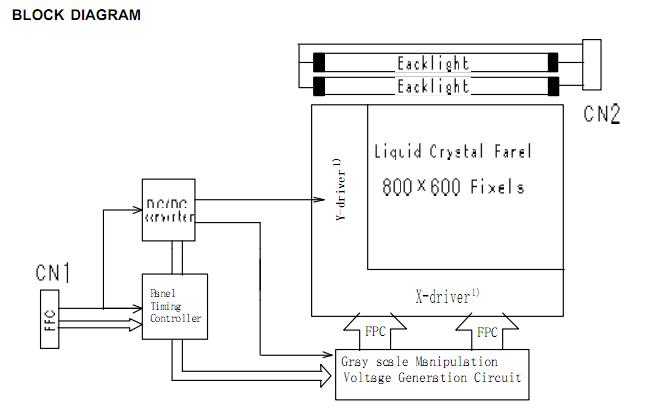

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTM08C351 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LTM08C351R |
Toshiba |
LCD 8.4INCH 800X600 SVGA AR COAT |
Data Sheet |
Negotiable |
|
||||
