Product Summary

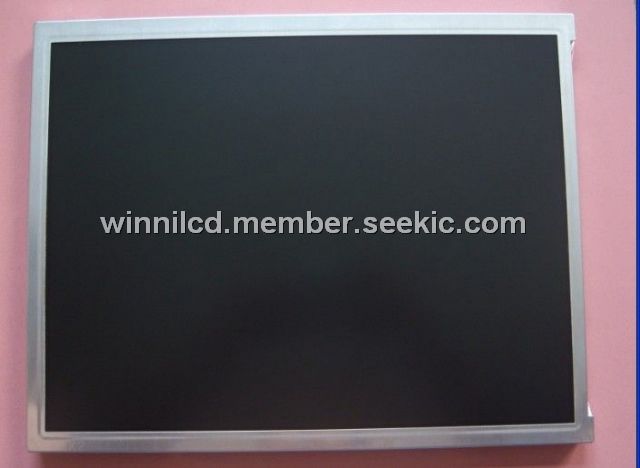

The LQ150X1DG16 is a color active matrix LCD module incorporating amorphous silicon TFT. Its applications include color TFT-LCD module.

Parametrics

LQ150X1DG16 absolute maximum ratings: (1)Input voltage, VI: -0.3 to +5.5V; (2)+5.0V supply voltage, VCC: 0 to +6V; (3)Storage temperature, Tstg: -25 to +60℃; (4)Operating temperature, Topa: 0 to +50℃.

Features

LQ150X1DG16 features: (1)Display size: 38cm, 15.0inch; (2)Active area: 304.1(H)×228.1(V) mm; (3)Pixel format: 1024(H)×768(V) pixel; (4)Pixel pitch: 0.297(H)×0.297(V) mm.

Diagrams

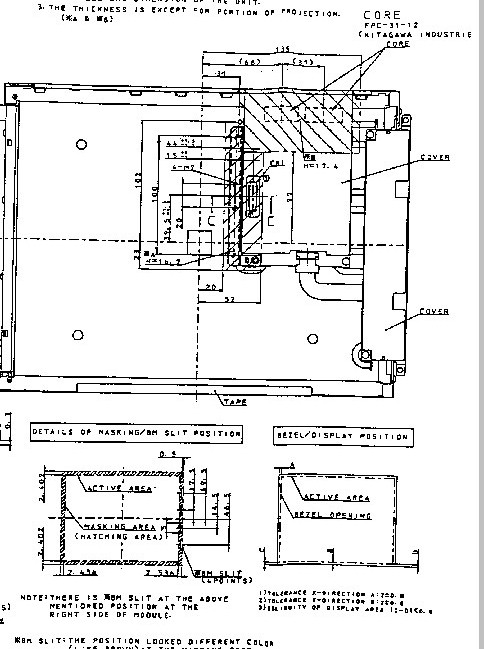

LQ150X1DG16 dimensions
