Product Summary

The LQ104S1LG21 is a color active matrix LCD moduling incorporating amorphous silicon TFT. The applicationgs of it include color TFT-LCD module.

Parametrics

LQ104S1LG21 specifications: (1)+3.3V supply voltage, Vcc: 0 to +4.0V; (2)Input voltage, VI1: -0.3 to Vcc+0.3V; VI2: -0.3 to Vcc+0.3V; (3)Storage temperature, Tstg: -30 to +70℃; (4)Operating temperature, Topa: -10 to +65℃; (5)Lamp input voltage, VHIGH: 0 to +2000Vrms.

Features

LQ104S1LG21 features: (1)Lamp current range, IL: 7.0mArms; (2)Lamp power consumption, PL: 2.8W; (3)Lamp frequency, FL: 70kHz; (4)Kick-off voltage, Vs: 1450Vrms.

Diagrams

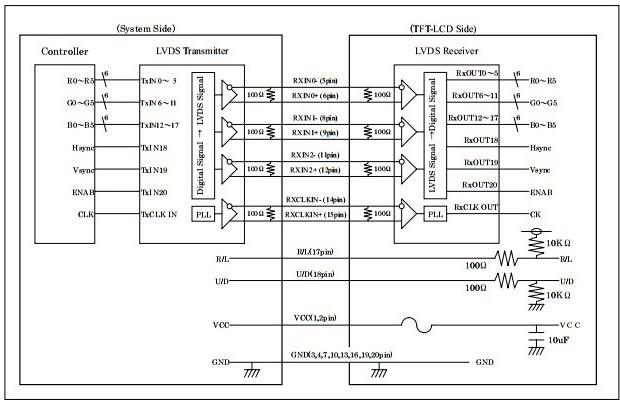

LQ104S1LG21 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LQ104S1LG21
LQ104S1LG21

Sharp Microelectronics

TFT Displays & Accessories 10.4" SVGA 350 NIT

Data Sheet

Negotiable
