Product Summary
The LM64P11 is a Large Size Graphic Type LCD Module.
Parametrics
LM64P11 specifications: (1)Display size: 15 [6.0] cm [”]; (2)Brightness: 80 cd/m2; (3)Dot format (H × V): 640 × 480 dot; (4)Duty ratio: 1/240; (5)Dot pitch (H × V): 0.19 × 0.19 mm; (6)Backlight type: 1CCFT(E); (7)Active area (H × V): 121.6 × 91.2 mm; (8)Power consumption panel: 300 mW; Backlight: 1 100 mW; (9)Panel type: *1; (10)Panel mode: Transmissive; (11)Outline dimensions (W × H × D): 167.7 × 122.8 × 5.8 mm; (12)Color: B/W color; (13)Weight: 145 g; (14)Contrast ratio: 18 : 1; (15)Operating temperature: 0 to +45 ℃; (16)Response time: 150[350] ms; (17)Storage temperature: -25 to +60 ℃.
Features
LM64P11 features: (1)15 cm [6”] VGA format; (2)Thin (5.8 mm) & lightweight (145 g); (3)Black & white display; (4)High contrast (18 : 1); (5)Mechanically compatible with LM64K111.

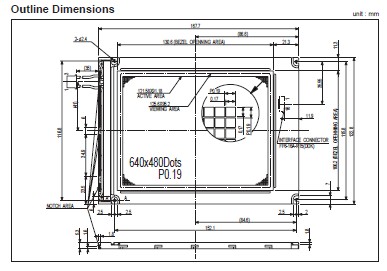

Diagrams
