Product Summary

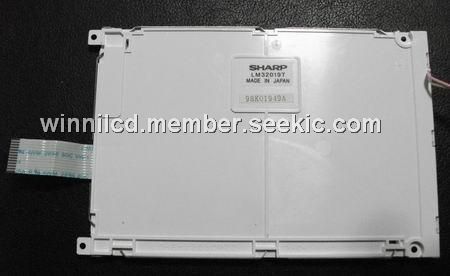

The LM32019P is a Medium Size Graphic Type LCD Module.
Parametrics
LM32019P absolute maximum ratings: (1)Display size: 14 [5.7] cm ["]; (2)Dot format (H × V): 320 × 240 dot; (3)Dot pitch (H × V): 0.36 × 0.36 mm; (4)Active area (H × V): 115.2 × 86.4 mm; (5)Panel type: FSTN (Nega); (6)Panel mode: Transmissive ; (7)Color: B/W color; (8)Contrast ratio: 10 : 1; (9)Response time: [520] ms; (10)Brightness: 70 cd/m; (11)Duty ratio: 1/240; (12)Backlight type: 1CCFT(E); (13)Power consumption panel: 46 mW; Backlight: 1 450 mW; (14)Outline dimensions (W × H × D): 160.0(166.0) × 109.0 × 7.5 mm; (15)Weight 160 g; (16)Operating temperature: 0 to +45 ℃; (17)Storage temperature: -25 to +60 ℃.
Features
LM32019P features: (1)14 cm [5.7"] QVGA format; (2)Black & white display; (3)Mechanically compatible with LM32019T.

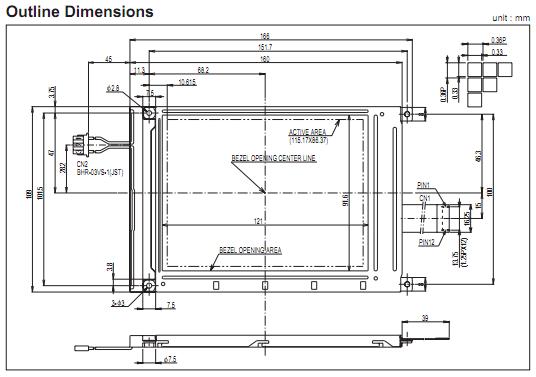

Diagrams
