Product Summary
The LM24014W is a Medium Size Graphic Type LCD Module.
Parametrics
LM24014W absolute maximum ratings: (1)Display size: 13 [5.2] cm [ "]; (2)Dot format (H × V): 240 × 64 dot; (3)Dot pitch (H × V): 0.53 × 0.53 mm; (4)Active area (H × V): 127.2 × 33.9 mm; (5)Panel type: STN; (6)Panel mode: Transflective; (7)Color: Gray color; (8)Contrast ratio: 7 : 1; (9)Response time: 450ms; (10)Brightness: cd/m2; (11)Duty ratio: 1/64; (12)Backlight type: EL; (13)Power consumption Panel: 75 mW; (14)Outline dimensions (W × H × D): 180.0 × 65.0 × 10.5 mm; (15)Weight: 120 g; (16)Operating temperature: 0 to +45℃; (17)Storage temperature: -25 to +60℃.
Features
LM24014W features: (1)13 cm [5.2"] STN; (2)Transflective Type ; (3)EL backlight is optionally available; (4)Wide temperature range, Topr: 0 to +45℃, Tstg: -25 to +60℃.

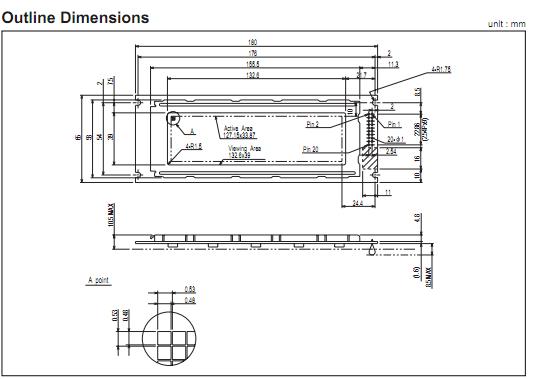

Diagrams
 |
