Product Summary

The LM10V331 is a Color STN LCD Module.

Parametrics

LM10V331 absolute maximum ratings: (1)Display size: 26 [10.4] cm ["]; (2)Dot format (H × V): 640 × RGB × 480 dot; (3)Dot pitch (H × V): 0.11 × 0.33 mm; (4)Active area (H × V): 211.2 × 158.4 mm; (5)Panel type: 1; (6)Panel mode: Transmissive; (7)Contrast ratio: 30 : 1; (8)Response time: 300 ms; (9)Brightness: 70 cd/m2; (10)Backlight typ:e 1CCFT(E)*2; (11)Duty ratio: 1/240; (12)Logic voltage: 5.0 Vcon V; (13)Power consumption panel: 1050 mW; Backlight: 3 000 mW; (14)Outline dimensions (W × H × D): 264.0 × 193.6 × 8.5 mm; (15)Weight: 450 g; (16)Operating temperature: 0 to +40℃; (17)Storage temperature: -25 to +60℃.

Features

LM10V331 features: (1)26 cm [10.4"] VGA format; (2)Cost effective color STN LCD; (3)High contrast (30:1); (4)Thin (8.5 mm) & lightweight (450 g); (5)Low power consumption (4.0 W).

Diagrams

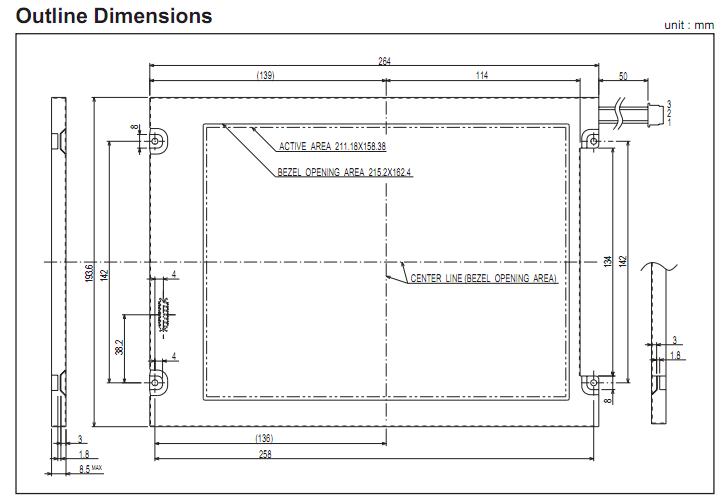

LM10V331 outline dimensions
