Product Summary

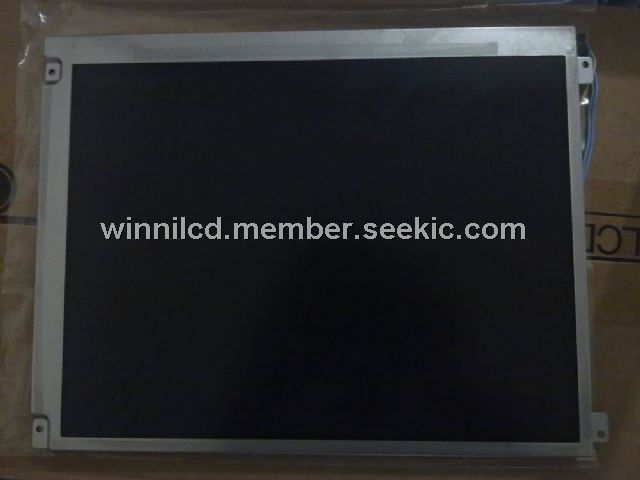

The AA104XA01 is a 10.4" color TFT-LCD module composed of LCD panel, driver ICs, control circuit, and backlight unit.
Parametrics
AA104XA01 absolute maximum ratings: (1)Power supply voltage for LCD, VCC: 4.0V; (2)Logic input voltage, VI: VCC+0.3V; (3)Lamp voltage, VL: 2000Vrms; (4)Lamp current, IL: 18mArms; (5)Lamp frequency, FL: 80kHz; (6)Operation temperature(panel), Top(Panel): 70℃; (7)Operation temperature(Ambient), Top(Ambient): 70℃; (8)Storage temperature, Tsto: 80℃.
Features
AA104XA01 characteristics: (1)Power supply voltage for LCD, VCC: 3.6V; (2)Power supply current for LCD, ICC: 800mA; (3)Permissive input ripple voltage, VRP: 100mVp-p; (4)Logic input voltage, High, VIH: VCC+0.3V; Low, VIL: 0.8V.

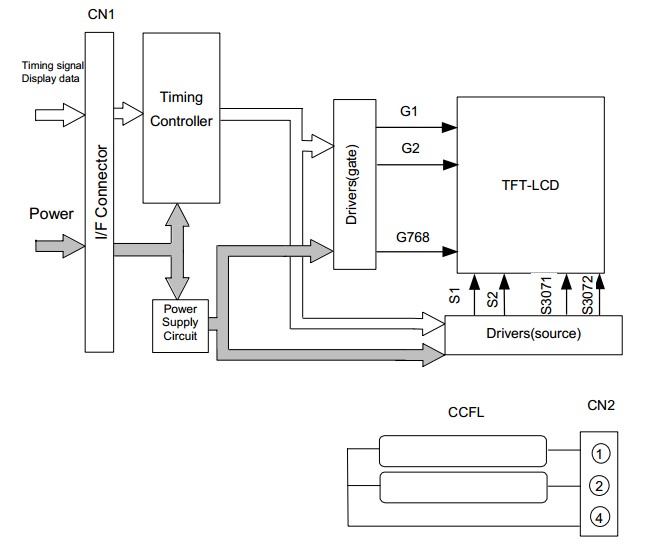

Diagrams
 |
