Product Summary
The NL6448AC20-06 is a LCD module which is composed of the amorphous silicon thin film transistor LCD panel structure with driver LSIs for driving the TFT array and a backlight. The applications of the NL6448AC20-06 include measuring instruments, display terminals for control system, new media, control board for NC machine, monitor for process controller.
Parametrics
NL6448AC20-06 absolute maximum ratings: (1)Supply voltage, VCC: -0.3 to +6.5V; (2)Input voltage, VI: -0.3 to 6.5V; (3)Storage temprature, Tst: -20 to +60℃; (4)Operating temperature: 0 to +60℃.
Features
NL6448AC20-06 features: (1)High luminance; (2)Low reflection; (3)Wide viewing angle with retardation film; (4)Display reverse scan function; (5)6-bit/4-bit digital RGB signals; (6)Edge type backling with long-life-lamps; (7)Variable luminance control; (8)Backlight lamp holder replaceable; (9)Compatible to the mounting hole position of NL6448AC20-02 except for inverter.

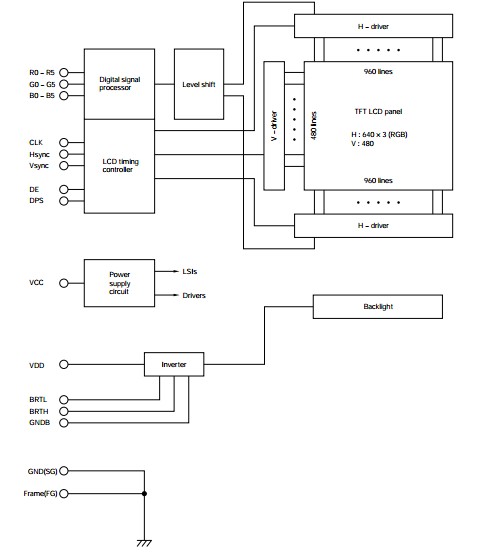

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 NL6448AC20-06 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
NL6448AC20-06 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
NL6448AC20-08 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
NL6448AC33-18A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
NL6448AC33-29 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
NL6448BC20-08 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
NL6448BC33-31 |
Other |
|
Data Sheet |
Negotiable |
|
||||
