Product Summary

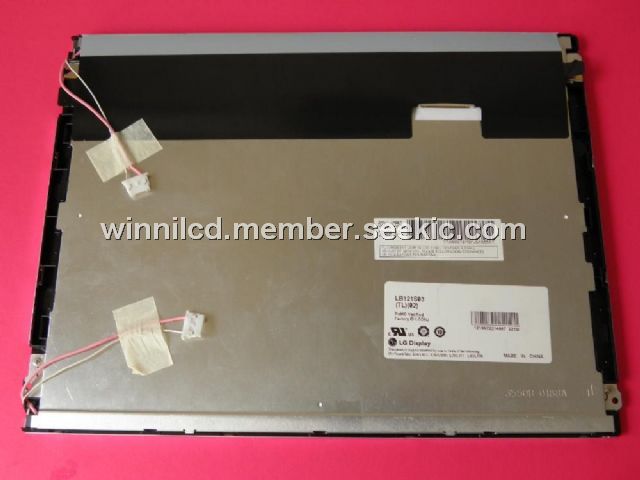

The LB121S03-TL02 is a color active matrix liquid crystal display with an integral Cold Cathode Fluorescent Lamp (CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. The LB121S03-TL02 is a transmissive type display operating in the normally white mode. This TFT-LCD LB121S03-TL02 has 12.1 inches diagonally measured active display area with SVGA resolution. The LB121S03-TD01 has been designed to apply the interface method that enables low power, high speed, low EMI. The LB121S03-TL02 is intended to support applications where thin thickness, low power are critical factors and graphic displays are important.
Parametrics
LB121S03-TL02 absolute maximum ratings: (1)Power Input Voltage VCC: min=-0.3Vdc, max=4.0Vdc; (2)Operating Temperature TOP: min=0, max=70℃; (3)Storage Temperature TST: min=-30℃, max=80℃; (4)Operating Ambient Humidity HOP: min=10%RH, max=90%RH; (5)Storage Humidity HST: min=10%RH, max=90%RH.
Features
LB121S03-TL02 features: (1)Active Screen Size: 12.1 inches(30.75cm) diagonal; (2)Outline Dimension: 276(H) × 209(V) × 11(D) mm; (3)Pixel Pitch: 0.3075 mm × 0.3075 mm; (4)Pixel Format: 800 horiz. By 600 vert. Pixels RGB strip arrangement; (5)Color Depth: 6-bit, 262,144 colors; (6)Luminance, White: 400 cd/m2(Typ.); (7)Power Consumption: 6.8 Watt(Typ.); (8)Weight: 690 g (Max.); (9)Display Operating Mode: Transmissive mode, normally white; (10)Surface Treatment: Anti-glare treatment.

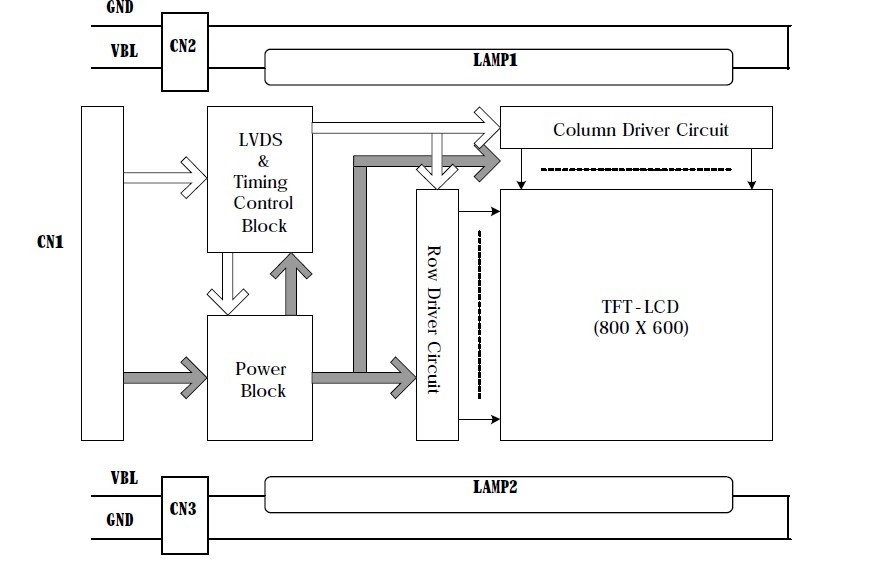

Diagrams
![]() |
