Product Summary

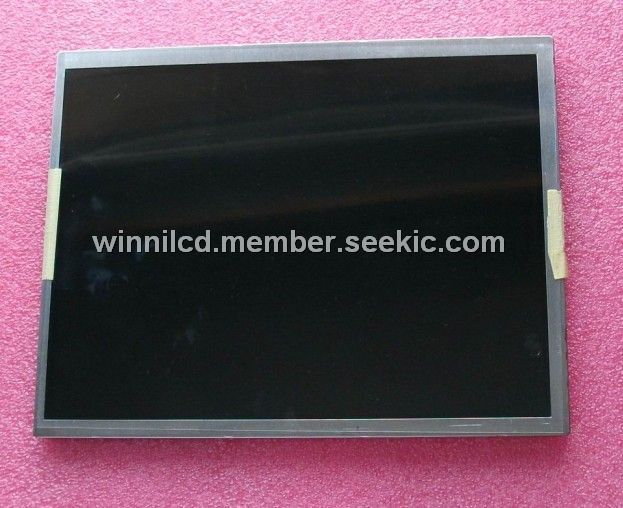

The NL8048BC19-02 is a TFT color LCD module. Its applications include industrial use.

Parametrics

NL8048BC19-02 absolute maximum ratings: (1)Power supply voltage, VCC: -0.3 to +4.0V; (2)Input voltage for signals, VD: -0.3 to VCC +0.3V; (3)Backlight, power dissipation, PD: (1.1)W; (4)Operating temperature, front surface, TopF: -20 to +70℃; Rear surface, TopR: -20 to +70℃.

Features

NL8048BC19-02 features: (1)High resolution; (2)High luminance; (3)High contrast; (4)Wide viewing angle; (5)LVDS interface; (6)Reversible-scan direction; (7)Selectable 8-bit or 6-bit digital signals for data of RGB; (8)LED backlight type; (9)Replaceable LED holder for backlight.

Diagrams

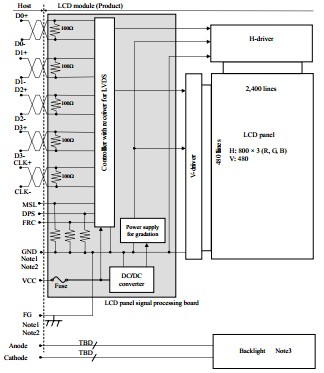

NL8048BC19-02 block diagram
