Product Summary

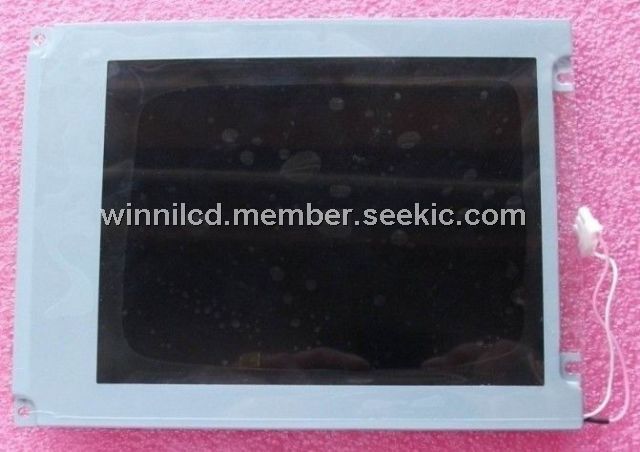

The KCS057QV1AJ-G60 is a STN color dot matrix type LCD with CFL backlight.
Parametrics
KCS057QV1AJ-G60 absolute maximum ratings: (1)Supply voltage for logic, VDD: 7.0V; (2)Supply voltage for LCD driving, VEE: 30.0V; (3)Input voltage, Vin: VDD V; (4)Operating temperature, Top: 70℃; (5)Storage temperature, Tsto: 80℃.
Features
KCS057QV1AJ-G60 characteristics: (1)Supply voltage for logic, VDD: 5.25V; (2)LCD driving voltage, Vop=VEE, -20℃: 26.5V; 25℃: 23.0V; 70℃: 20.0V; (3)Input voltage, Vin, "H" level: VDD V; "L" level: 0.2VDD V; (4)Clock frequency, fcp: 12.0MHz; (5)Frame frequency, fFRM: 80Hz; (6)Current consumption for logic, IDD: 4.5mA; (7)Current consumption for LCD driving, IEE: 11.3mA; (8)Power consumption, Pdisp: 315mW.

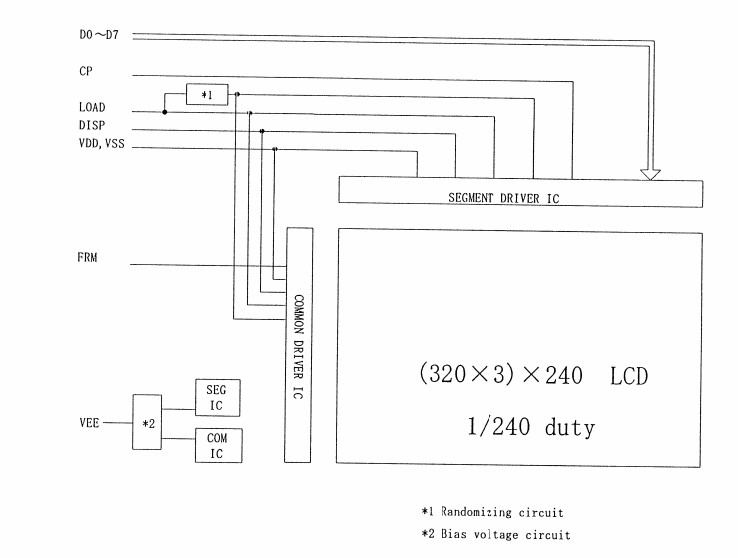

Diagrams
